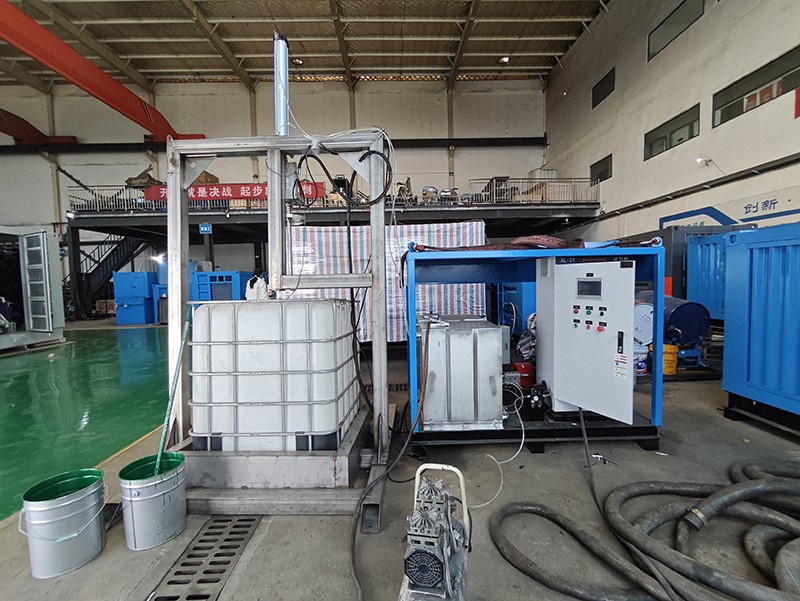

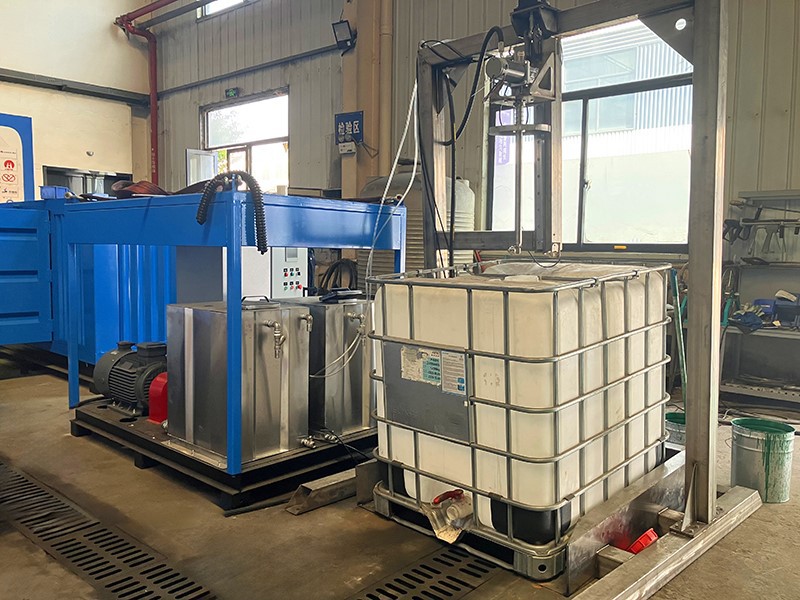

250bar 50Lpm Fully Automatic High-Pressure Cleaning Machine for IBC container is specifically engineered to tackle stubborn residues found in industries such as chemicals, food processing, and coatings. It perfectly meets your requirements with a powerful operating pressure of 250 bar and a high flow rate of 50 L/min.
1. Core Power System: Balancing High Pressure with Corrosion Resistance
316 Stainless Steel Pump Head: Utilizing an industrial-grade high-pressure triplex plunger pump, the pump head material has been upgraded to solid 316 stainless steel. This not only withstands prolonged operation involving alkaline solution circulation but also effectively resists pitting corrosion caused by chloride ions in water and various chemical cleaning agents, extending its service life by 3 to 5 times compared to standard brass pump heads.
Performance Parameters: The combination of 250 bar impact pressure and a 50 L/min flushing flow rate generates immense *impingement force* against the inner walls of the IBC tote, rapidly pulverizing dried and caked-on materials.
2. Dual-Tank Design: Efficient Physical + Chemical Cleaning
The system is equipped with two independent 200L stainless steel storage tanks:
Alkaline/Chemical Tank: Significantly accelerates the dissolution of grease, resins, and adhesives.
Freshwater Tank: Used for the final rinse cycle, ensuring no chemical residues remain inside the tote and meeting factory-level cleanliness standards.
3. Fully Automatic 3D Cleaning Mechanism (Core Advantage)
Fixed Station Mode: Totes are placed onto a fixed support bracket via forklift or conveyor belt, and the system automatically locates and aligns with the tote's opening.
Automatic Telescopic Lift Rod: A pneumatic lifting mechanism located at the top of the cleaning unit drives the spray head to descend vertically and enter the tote, eliminating the need for manual positioning adjustments.
3D Rotating Spray Head:
Employs dual-axis rotation technology (combining self-rotation and orbital rotation) to generate a spiderweb-like coverage pattern with the water jets.
Within the programmed cleaning cycle, the spray head achieves 360-degree, dead-angle-free coverage of the tote's top surface, side walls, and bottom corners.
For the bottom valve area, the program can be configured to extend the dwell time for intensified flushing.
4. Intelligent Control System
Integrated PLC Touchscreen: The user interface allows for the pre-configuration of multiple cleaning protocols (e.g., light contamination, heavy residue buildup, alkaline wash + freshwater rinse, freshwater rinse only, etc.). Adjustable Timing: The duration of each cleaning stage (pre-wash, chemical wash, draining, and rinsing) can be precisely set down to the second, striking an optimal balance between cleaning quality and operational efficiency.
Safety Interlocks: Equipped with features such as drum-mouth detection, emergency stop buttons, and low-liquid-level alarms to ensure operational safety.
Value Proposition
1. Exceptional Efficiency: The cleaning time for a single drum typically ranges from 2 to 5 minutes, allowing for a throughput of 12 to 20 drums per hour.
2. Labor Cost Savings: Thanks to a fully automated process, a single operator is sufficient to handle drum loading, unloading, and program initiation-eliminating the need for direct contact with chemical reagents or wastewater.
3. Standardized Operations: Completely eliminates the issues associated with manual cleaning-such as incomplete cleaning or residue accumulation in dead corners-thereby meeting stringent quality audit requirements.
The 250 bar / 50 LPM configuration currently represents the benchmark for comprehensive performance in IBC (Intermediate Bulk Container) cleaning applications. The pressure is sufficient to tackle even cured coatings, while the flow rate ensures rapid and thorough rinse coverage across large drum volumes. Furthermore, the inclusion of a 316 stainless steel pump head serves as the key differentiator, enabling this equipment to successfully penetrate the high-end chemical industry market.
