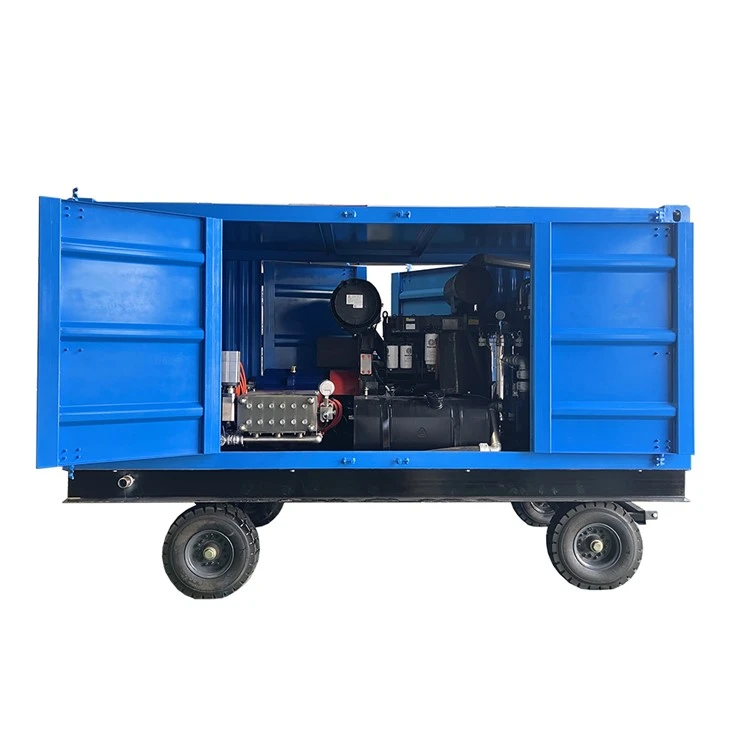

3 Lances Industrial Tube Descaling Water Blasting Machine



Delivering 1400 bar maximum pressure and 110 Lpm high flow rate, this 3 lances Industrial Tube Descaling Water Blasting Machine supports three spray guns operating simultaneously without obvious pressure drop. Designed for heavy‑duty hydro‑blasting tasks, it allows three operators to work in parallel, drastically boosting site‑work efficiency for tank cleaning, concrete surface removal, rust & coating stripping, pipe descaling and other heavy‑industrial projects. Built for continuous non‑stop field operation, it balances extreme pressure, sufficient water output and multi‑user compatibility to cut your project cycle and labor costs.



Our 3 lances Industrial Tube Descaling Water Blasting Machine is specially designed for petrochemical industry maintenance. With super high pressure and large flow rate, it efficiently removes oil sludge, hard scale, rust and coke deposits inside large industrial pipelines, heat exchangers, condensers and reactor tubes. Equipped with heavy-duty triplex plunger pump, optional diesel or electric power, stable continuous operation for refinery, chemical plant, energy station pipeline cleaning work. Support customized trolley/container type, matching pipe cleaning nozzles and tube lances for full heat exchanger tube cleaning. CE certified, direct factory supply with one-year warranty.



Engineered for heavy-duty industrial tube and shell heat exchanger cleaning, our 21000psi 110Lpm Industrial Tube Descaling Water Blasting Machine paired with a three-lance automatic tube cleaning system delivers unmatched cleaning efficiency and consistent performance for rigorous industrial maintenance tasks. Combining ultra-high 1500Bar pressure with stable 50LPM large water flow, this integrated unit generates powerful concentrated water jet energy to thoroughly strip stubborn hard scale, limescale, polymer deposits, rust and aged fouling inside heat exchanger tubes, condenser pipes and industrial tubular equipment without chemical additives. The automatic three-lance synchronous working design covers a larger cleaning area in one pass, eliminates repeated manual operation, drastically cuts cleaning downtime and labor costs, while ensuring uniform wall cleaning and zero residue damage to pipe substrates. Built with industrial-grade durable pump components and a safe remote control operating system, it enables long-term continuous stable operation in petrochemical, power plant, pharmaceutical and heavy manufacturing industries, perfectly solving the pain points of low efficiency and incomplete cleaning of traditional manual tube cleaning methods.



21000psi 110Lpm Industrial Tube Descaling Water Blasting Machine can realize automatic cleaning of heat exchangers and can clean 3 tubes at the same time. The combination of 1500bar high pressure and 25Gpm large flow can produce a strong impact force and effectively remove stubborn dirt on the surface and inside of the heat exchanger, such as tar, oil stains, coke deposits, metal oxides and dust on the heat exchanger of the coking plant



The automatic heat exchanger cleaning system is a practical and convenient system that can be paired with a variety of automation systems. The system can control, efficiently and safely clean the inner diameter of heat exchanger tubes. The automatic heat exchanger cleaning System can also be paired with other high-pressure nozzles for tube sheet cleaning and surface preparation. It is specially designed to be modular, lightweight, easy to install and scalable for various exchanger sizes or configurations.



With decades of experience in manufacturing industrial cleaning equipment, we know that there are certain "problem" equipment in manufacturing plants, power plants and other facilities across the country. Because they are installed in a way that makes it extremely difficult to access them, these equipment are rarely thoroughly cleaned. This industrial pipe automatic cleaning system can achieve thorough cleaning of industrial heat exchangers and condensers that have been fouled for many years.



21000psi Industrial Tube Descaling Water Blasting Machine is equipped with an automatic positioner. The cleaning tool used is very flexible and can even pass through curved condenser tube for thorough cleaning. For specific projects, an automatic dual-gun machine can be used to speed up the cleaning process by cleaning multiple pipes at the same time.

We often reduce traditional cleaning times by 40% or more, getting plants and equipment back up and running with far less downtime and production losses than ever before.



For the automatic condenser tube cleaning system, the job was completed in seven hours, about 40% less time than using the manual spray gun method. And the automatic cleaning system will achieve a more precise and thorough cleaning than the handheld high-pressure gun cleaning method.

Customized service for each job



Our automated boiler, heat exchanger and other equipment cleaning systems are very flexible, allowing us to fully customize our equipment and methods to complete each job. We will develop more efficient, safer and more economical cleaning solutions for customers based on customer needs and site conditions.



Whether the challenge is a water tank with decades of hardened mineral buildup or a pile of boiler tubes that can't be reached with manual cleaning equipment, there are automated solutions to solve these problems.



Model	GYB-5 96/1400
Pump Speed	366 rpm
High pressure pump	Germany WOMA brand pump
	Pump head material: Stainelss steel
	Variable frequency motor drive
	Remote control start and stop
	Variable frequency motor drive
Rate Pressure	1400 bar /21000 psi
Water flow	96L/min   25Gpm
Plunger dia.	28mm
Electric motor drive	250kw, 3 phase
Diesel engine drive	320kw, 6-cylinder







1. Heat exchanger cleaning;

2. Condenser tube cleaning;

4. Industrial pipe/tank cleaning;

5. Boiler tank cleaning.











1. Packing: Plywood packing

2. Shipping way: suggest deliver by sea

3. Delivery port: Qingdao Port; or deliver to any port you need
