Plate Heat Exchanger Cleaning Hydro Blasting Machine

ffectively solve stubborn scaling, sludge blockage and heat efficiency attenuation issues of industrial plate heat exchangers with our professional 170Lpm 240bar Plate Heat Exchanger Cleaning Hydro Blasting Machine. Most plate heat exchangers suffer from accumulated limescale, oil dirt and sediment after long-term continuous operation, which narrows heat exchange channels, reduces thermal efficiency significantly, and even causes system pressure rise and equipment aging, bringing huge hidden dangers to industrial production. Different from traditional chemical cleaning and manual scrubbing with low efficiency and residual risks, this Plate Heat Exchanger Cleaning Hydro Blasting Machine adopts a perfect combination of 240bar stable high pressure and 170Lpm ultra-large water flow. The high-pressure water jet thoroughly strips stubborn hard scale and adhered impurities from plate gaps, while the large-flow water volume quickly flushes away all dirt residues without dead corners.

It realizes efficient, non-damaging and chemical-free physical cleaning, perfectly matching the cleaning and maintenance demands of various stainless steel and titanium alloy plate heat exchangers in chemical, HVAC, food processing and industrial cooling systems, efficiently restoring original heat exchange performance and extending the service life of heat exchange equipment.

The Plate Heat Exchanger Cleaning Hydro Blasting Machine is an industrial-grade high-pressure water cleaning unit specifically designed for plate heat exchangers. By utilizing a high-energy, high-flow water stream to penetrate the narrow gaps between the plates, it thoroughly strips away stubborn dirt and deposits.

1. Powerful High-Pressure Power Unit of the Plate Heat Exchanger Cleaning Hydro Blasting Machine

• High-Pressure Pump Group: The Plate Heat Exchanger Hydro Blasting Machine pressure reaches up to 240 bar. This high pressure generates a powerful impact force, effectively breaking down and removing scale, oil sludge, and other deposits from the plates.

• High-Flow Design: The rated flow rate is 170 L/min. This high flow rate ensures that a sufficient volume of water passes through the plate gaps per unit of time, not only flushing away dirt but also enhancing overall cleaning efficiency.

• Power Configuration: Driven by a 75 kW electric motor, the system provides an ample power source for the high-pressure pump group, ensuring stable operation even under full-load pressure.





product key technologies

01.

Main Fetures

Cleaning Width: The system is designed with a cleaning width of 1 meter. This specification allows it to perfectly accommodate most standard-sized plate packs found in commercial plate heat exchangers, ensuring efficient coverage.

02.

Nozzle Layout: Equipped with 11 fan-shaped direct-spray nozzles. The single-sided cleaning design means the water stream is projected from one side, penetrating through the entire channel between the plates.

Fan-Shaped Spray: The water stream spreads out in a fan pattern, creating a large contact area that uniformly covers the plate surface and minimizes uncleaned "dead zones."

Direct-Spray: The water stream follows a straight path with strong penetrating power, making it ideal for clearing deep-seated blockages.

3. Advantages of the Plate Heat Exchanger Cleaning Hydro Blasting Machine

• Efficient Descaling: The combination of high pressure and high flow rate significantly shortens the cleaning cycle and improves equipment turnaround efficiency.

• Plate Protection: Unlike chemical cleaning methods, high-pressure water jet cleaning is a physical process; it avoids the corrosive damage to the plate corrugations often caused by acids and alkalis, thereby extending the service life of the equipment.

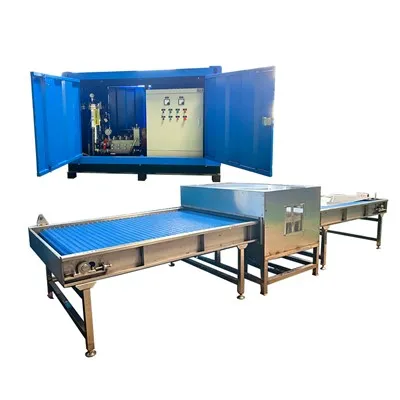

• High Degree of Automation: When integrated with the conveyor/roller system shown in the accompanying image (featuring a stainless steel frame and blue conveyor belt), the system typically supports automatic feeding and discharging, thereby minimizing manual intervention and reducing labor intensity. 4. Applicable Scenarios



product details





direct injection nozzle

 Cleaning Line

High pressure pump Unit

This system is widely applicable to the periodic maintenance and cleaning of plate heat exchangers across industries such as petrochemicals, electric power, steel, and food and beverages-particularly in scenarios involving severe fouling or conditions that are difficult to clean manually.

Customer Cases



Plate heat exchanger cleaning

Plate heat exchanger cleaning

Plate heat exchanger cleaning

Heat exchanger cleaning

Reactor cleaning

Reactor cleaning

Other Application

Heat Exchanger Cleaning Bundle Blaster

The Bundle Blaster system offers a powerful and affordable automated solution for external cleaning of heat exchangers, evaporators, condensers, and other industrial tube bundles. This system is ideal for contractors and plants interested in low maintenance, cost-effective, easy-to-use equipment. The Bundle Blaster is safer and more effective than traditional hand-held methods of shell side cleaning, and 1/3 of the cost of trailer mounted systems.

Concrete Mixer Drum Blasting System

The concrete mixer drum blasting system is an automated accessory designed specifically for removing residual concrete from the drum's inner walls, blades, and inlet and outlet ports. It is a core device for batching plants, ensuring production quality, improving efficiency, and reducing costs. Its core philosophy is to replace the inefficiency and high risks of traditional manual cleaning with a "powered drive + precise spraying + intelligent control" approach, achieving an upgrade from "passive residue removal" to "active safety assurance."



Company profile

Zhengzhou GuangYuan Cleaning Equipment Co.,Ltd. Is a manufacturer for high pressure water jetting machine, founded in 2012, is committed to explore the field of a high pressure water jet market brand. Our company is located in Henan Province, China.

We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, High pressure cleaner, high pressure pump, cleaning system customization etc. Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc.  Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world. We sincerely look forward to cooperating with new and old clients.

01

Advanced Technology

We work closely with KAMAT, a world leader in cleaning machine industry, with the highest pressure of 3000bar, which is currently the highest pressure in the world's high-pressure water jet field.

02

Stable and Safe

The pressure regulating valve is flexible and light. The overpressure protection safety valve opens and closes sensitively and reliably. The bursting pressure of the high-pressure hose is 2.5-3.5 times the rated pressure.

03

Excellent Quality

The high pressure cleaning machine is manufactured and inspected strictly in accordance with national and industry standards before leaving the factory. It can work continuously for 24 hours at rated pressure

04

Custom Service

We understand that different industries and cleaning requirements may have specific needs. Therefore, we offer customization service, allowing customers to tailor the machine to their unique requirements.

1. Packing: Plywood packing

2. Shipping way: suggest deliver by sea

3. Delivery port: Qingdao Port; or deliver to any port you need
