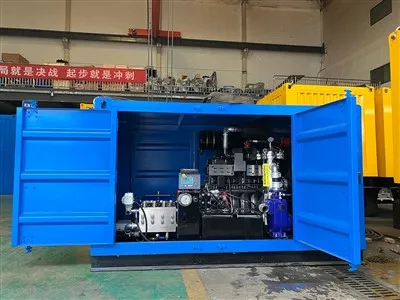

320L/min 200bar Water Jet Pilot Hole Piling Equipment

320L/min 200bar Water Jet Pilot Hole Piling Equipment – The Ultimate Solution for Tough Soil Piling Projects
Engineered for demanding foundation and sheet pile installation, our 320LPM 200Bar High-Pressure Water Jet Pilot Hole Piling Machine delivers unmatched power and precision to tackle dense sand, hard clay, gravel, and soft rock formations. This industrial-grade piling equipment uses high-pressure water jet technology to pre-cut, loosen, and liquefy soil, creating accurate pilot holes that drastically reduce driving resistance for steel sheet piles, pipe piles, and H-beam piles.

The 320L/min 200bar Water Jet Pilot Hole Piling Equipment offers significant advantages in pile foundation engineering-particularly in the installation of steel sheet piles and steel pipe piles-thanks to its powerful combination of high flow rate and high pressure. This equipment effectively breaks up and disperses complex geological strata-such as dense sand, stiff plastic clay, and completely weathered rock-and penetrates hard interlayers that traditional piling methods struggle to breach. By working in tandem with the piling machine-using high-pressure water jets to pre-treat the soil-the system allows the pile to sink smoothly, boosting overall operational efficiency by 50% to 100%.

The 320L/min 200bar Water Jet Pilot Hole Piling Equipment is the ideal configuration for engineering pre-drilling and piling scenarios. It combines the rock-breaking/soil-cutting penetration power of a high-pressure water jet with high flow rate to ensure efficient operation. The 500 bar high-pressure water jet directly creates a dual effect of water wedge splitting and erosive stripping on soil, weathered rock, soft rock, and gravel layers. The 300 Lpm high flow rate quickly removes debris from the borehole, eliminating the problems of drill pipe rotation friction in traditional rotary drilling and hard contact jamming in impact drilling. The efficiency improvement is particularly significant in strata where traditional equipment struggles, such as gravel layers and highly weathered rock.

The advantages of 320L/min 200bar Water Jet Pilot Hole Piling Equipment from its core principle of "high-pressure water jet pretreatment + precise placement." This method specifically addresses the pain points of traditional pile driving in complex geology, efficiency, and quality. By preemptively softening and breaking the soil with a high-pressure water jet, the pile fundamentally reduces its resistance to sinking. For hard plastic clay, dense sand and gravel layers, and fully weathered rock, the water jet can "cut" and soften the soil, preventing bending and fracture of piles (such as steel sheet piles and H-piles) caused by the strong impact.

Water Jet Pilot Hole Piling Equipment is a construction method that uses high-pressure water jet technology to assist in drilling and then piling in pile foundation construction. Compared with traditional piling methods, such as hammering piles, which will produce huge noise, high-pressure water jet piling mainly relies on high-pressure water jets to drill holes, which has relatively low noise and less interference to surrounding residents and the environment. It is especially suitable for areas with strict noise restrictions such as urban centers.

With the further promotion of the green prefabricated building concept in the development of the construction industry, prefabricated piles such as steel sheet piles, H-shaped steel, and steel pipe piles are increasingly used in underground projects such as deep foundation pits. At present, the traditional vibration method is generally used for pile sinking construction of prefabricated piles. However, this method is more difficult to sink piles in harder soil layers (hard plastic clay, dense sand layers, etc.), progresses slowly, and is extremely inefficient.

High-pressure water jet assisted piling technology solves this problem!

After 320L/min 200bar Water Jet Pilot Hole Piling, the pile driving resistance is significantly reduced, the pile sinking speed is accelerated, the efficiency is increased by more than 50%, and the construction cost is not increased. Since the difficulty of pile driving is greatly reduced, the quality of the pile body is effectively protected.

The Water Jet Pilot Hole Piling Equipment has the characteristics of safety, reliability, fast construction speed, low cost, reduced construction noise, energy saving and environmental protection, and the difficulty of pile sinking is significantly reduced.

The piling resistance is reduced, and for hammering piles, the hammering energy will be greatly reduced; for static pressure piles, the static pressure mechanical operating power will also be greatly reduced, which is energy-saving and environmentally friendly.





product key technologies

01.

Main Fetures

1. The high pressure pump introduces Germany WOMA advanced technology, vertical stainless steel pump head, stainless steel nickel plated alloy plunger, forced cold water cooling;

2. High pressure pump box material ductile iron, good heat dissipation, hard texture, not easy to deformation;



02.

Scope of application

Different solutions can be applied to different soil conditions:
In hard soil, the water jet head can be used to directly sink and drill holes, and the advantages of pile driving are obvious;
Clay layer, sand layer, residual soil or fully weathered rock can also be applied. When the geology is fully weathered rock, high-pressure water can be used directly to punch holes;
Not applicable to weathered rock or strongly weathered rock formations.



product details





Main console

Diesel Engine

Nozzle



Effect comparison

Large flow water column

Large flow water column

Large flow water column

High pressure water jet guide hole piling
High pressure water jet guide hole pulling out piles

Customer Cases



High pressure water jet assisted piling

High pressure water jet assisted piling

High pressure water jet assisted piling

High pressure water jet assisted piling

High pressure water jet assisted pile pulling

High pressure water jet assisted pile pulling

About Guangyuan UHP Hydro Blaster/UHP Water Blaster System

We manufacture the most special, professional , stable high pressure pure water jetting unit for our customers-also called hydro blaster or water blaster. Our UPH water cleaning system employ the demanding task in nearly all the industries. The system endows the safety, environmental-friendly, high efficiency, cost down and value more, widely used in cleaning heat exchanger, autoclave, pipeline, reaction kettle etc.

Why Choose UHP Pure Water Cleaning

Equipment of Petrochemical industries as heat exchanger, condenser, autoclave, accumulated plenty of debris in the bundle tube, facing the risk of efficiency of heat exchanging, fluid flow, and heated unevenly to cause the pipe crack or even explode. Scheduled cleaning is extremely important for production. Universally knowing, pure water cleaning is the most economic, safe, on contamination environmental friendly, low cost method of cleaning petrochemical industrial production equipment.

Zhengzhou GuangYuan Cleaning Equipment Co.,Ltd. Is a manufacturer for high pressure water jetting machine, founded in 2012, is committed to explore the field of a high pressure water jet market brand. Our company is located in Henan Province, China.

We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, High pressure cleaner, high pressure pump, cleaning system customization etc. Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc.  Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world. We sincerely look forward to cooperating with new and old clients.

01

Advanced Technology

We work closely with KAMAT, a world leader in cleaning machine industry, with the highest pressure of 3000bar, which is currently the highest pressure in the world's high-pressure water jet field.

02

Stable and Safe

The pressure regulating valve is flexible and light. The overpressure protection safety valve opens and closes sensitively and reliably. The bursting pressure of the high-pressure hose is 2.5-3.5 times the rated pressure.

03

Excellent Quality

The high pressure cleaning machine is manufactured and inspected strictly in accordance with national and industry standards before leaving the factory. It can work continuously for 24 hours at rated pressure

04

Custom Service

We understand that different industries and cleaning requirements may have specific needs. Therefore, we offer customization service, allowing customers to tailor the machine to their unique requirements.

1. Packing: Plywood packing

2. Shipping way: suggest deliver by sea

3. Delivery port: Qingdao Port; or deliver to any port you need

Hot Tags: 320l/min 200bar water jet pilot hole piling equipment, China 320l/min 200bar water jet pilot hole piling equipment suppliers, factory
