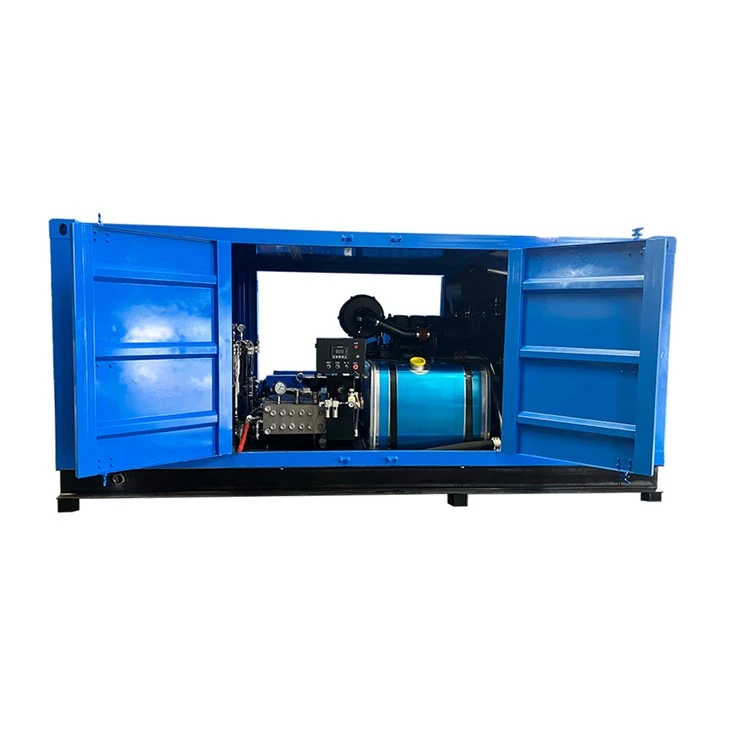

22000psi Large Pipe Cleaning Hydro Blasting Machine

Name: China 22000psi Large Pipe Cleaning Hydro Blasting Machine Suppliers Factory - Guangyuan Cleaning Equipment
Brand: GUANGYUAN
SKU: 293983695

Rate Pressure:1500bar/22000psi/150Mpa
Water flow:110L/min
Electric power: 320kw
Diesel engine drive:392kw, 6-cylinder

Send Inquiry

Product Introduction

Products Description

The 110L/min 22000psi Large Pipe Cleaning Hydro Blasting Machine is a high-end industrial-grade model for cleaning large-diameter, heavily fouled pipes. It offers irreplaceable operational value in heavy-duty cleaning scenarios such as municipal, oil and gas, and chemical industries. The 1500bar ultra-high-pressure water jet can directly remove hard deposits on the inner pipe wall, such as calcium carbonate scale, rust scale, and cement scale, and cut through stubborn blockages such as accumulated sludge, tree roots, and construction waste, eliminating the need for prior manual chiseling. This completely solves the problem of low- and medium-pressure equipment being unable to effectively clean or break through blockages, and is especially suitable for old pipes that have not been cleaned for a long time.

The 22000psi Large Pipe Cleaning Hydro Blasting Machine can generate a strong jet force, which can easily break up the stubborn dirt, rust, scale and other impurities in the pipe and remove them completely. It can also effectively remove some long-term accumulated thick dirt, which is difficult for ordinary cleaning equipment to achieve. High-pressure water flow can quickly flush the inner wall of the pipe, greatly improve the cleaning efficiency, and reduce the cleaning time and labor cost. It can complete the cleaning of long-distance and large-diameter industrial pipes in a short time, meeting the needs of rapid maintenance of equipment in industrial production.

The 22000psi Large Pipe Cleaning Hydro Blasting Machine can efficiently and quickly clean various hard-to-clean hard scales in large industrial pipelines. According to the size of the inner diameter of the pipeline, we support the customization of various specifications of pipeline automatic crawlers to meet the requirements of automatic cleaning of large industrial pipelines. There is no need for manual handheld high-pressure gun cleaning, which saves manpower.

22000psi Large Pipe Cleaning Hydro Blasting Machine is a method of cleaning verious large industrial pipes. It uses high-pressure water flow through a special jet nozzle to clear and remove obstructions, and performs regular maintenance to prevent sewage back flow.

22000psi Large Pipe Cleaning Hydro Blasting Machine use high pressure water to clean tubes and tanks, and can also protect coatings, old paint, epoxy resin, rust removal.

Large Pipe Cleaning Hydro Blasting Machine uses water at pressures of 100 bar to 300 bar to clean the inside of drains and sewer pipes. Using 3D nozzles, it can also be used for hull paint and rust removal.

product key technologies

Main Features

1. High pressure pump introduced Germany KAMAT advanced technology;

2. Stainless steel pump head; Stainless steel nickel-plated plunger, forced water cooling;

3. The water seal is made of ductile iron imported from the United States;

4. Good heat dissipation, hard texture, not easy to deformation;

02.

5. The crankcase at the power end is lubricated with forced lubrication, which reduces the temperature of the crankcase;

6. Smooth and reliable transmission, reduce friction coefficient, improve lubricity;

7. Pure high pressure water physical cleaning, no need to add any chemical agents when used, no pollution, is the national promotion of green environmental protection high-tech products.

This method is ideal for internal and external surface cleaning because the water jet operator is able to reach those "hard to reach" areas. In addition, due to its powerful water spraying power, the user can maintain a safe distance from the surface being cleaned.

Large Pipe Cleaning Hydro Blasting Machines are essential to maintaining the cleanliness and integrity of tanks and pipes in industries such as oil and gas, chemical processing, food and beverage, and wastewater treatment. By effectively removing deposits and contaminants, these machines help prevent blockages, corrosion, and other issues that can affect the efficiency and safety of industrial operations.

product details

Wheels for easy mobility

diesel engine

our factory appearance

key features and functions

High-pressure water jets: The machine typically utilizes a high-pressure water jet to remove and dislodge stubborn deposits and buildup from the surface of a tank or pipe. It directs a powerful stream of water at high pressure to effectively clean and flush away contaminants.

Rotating nozzles or cleaning heads: Cleaning machines typically contain rotating nozzles or cleaning heads that can be inserted into the pipe. These rotating nozzles ensure thorough coverage and provide 360-degree cleaning, reaching all areas of the surface.

Water recovery and filtration: To optimize water usage and minimize environmental impact, some cleaning machines may contain water recovery and filtration systems. These systems filter and reuse water, reducing the amount of fresh water required for the cleaning process.

Remote operation and monitoring: Depending on the design and sophistication of the machine, it may offer remote operation and monitoring capabilities. This enables the operator to control the cleaning process from a safe distance and monitor the progress of the cleaning operation.

Adjustable pressure and flow: The machine typically allows the operator to adjust the pressure and flow of the water jet to meet different cleaning requirements. This flexibility ensures that the cleaning process can be customized to the specific nature of the deposits as well as the condition of the pipe.

Execution accessories

Large pipe crawler for pipes with a diameter of 1000mm-2000mm

Large pipe crawler for pipes with a diameter of 500mm-1000mm

Two-dimensional rotating nozzle

We can customize different specifications of pipeline crawlers for this large pipeline cleaning high-pressure jetting machine according to the inner diameter of the customer's pipeline. Inside the pipeline, the pipeline crawler automatically crawls forward under the force of high-pressure water. The crawler is equipped with a 3D rotating nozzle, which can achieve 360-degree cleaning inside the pipeline and effectively remove stains inside the pipeline.

Product Parameters

Model	GYB-5 1500/110
Pump Speed	366 rpm
High pressure pump	Triple plunger pump
	Pump head material: Stainelss steel
	Plunger material: stainless steel
	Pump speed:366rpm
	Plunger stock:120mm
Rate Pressure	1500 bar / 22000 psi
Water flow	110 L/min
Plunger dia.	22mm
Electric motor drive	320kw, 3Phase, 380v/50Hz or 440v/60Hz
Diesel engine drive	392kw, 6-cylinder

Products Applications

Industrial and sewer PIpe cleaning

Pipe pressure test, valve / hose pressure test, hydro pressure test, etc

Heavy equipment cleaning

Construction industry, car/truck cleaning, mixing drum/tank cleaning, tar/cement/agglutinant cleaning, etc

Ship and deck cleaning

Ship yard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom.

Rust remove

Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal.

Exchanger cleaning

heat exchanger tube cleaning, condenser tube cleaning, pipe cleaning, reactor tank cleaning, filter screen cleaning, boil cleaning, tank cleaning, etc.
