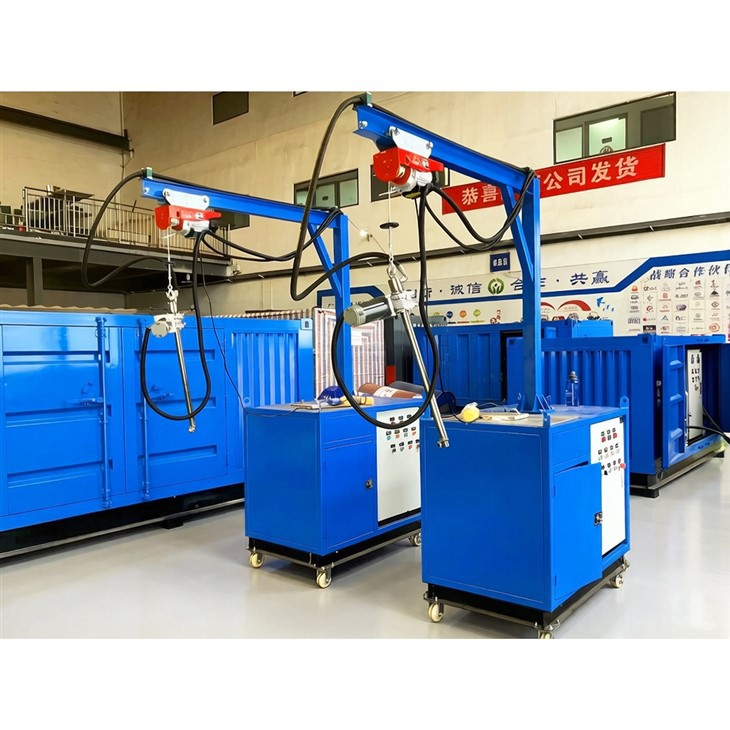

180bar IBC Container Blasting Machine

180bar IBC Container Blasting Machine delivers exceptional penetrating power, capable of effortlessly stripping away stubborn, dried-on, or encrusted residues from the container walls. Flow rate determines the "impact mass" of the water jet; at a constant pressure, a higher flow rate translates to greater impact force. The 50 Lpm flow rate creates a wider cleaning coverage area, ensuring that once dirt and residues are dislodged, they are rapidly flushed away. For materials commonly encountered in the chemical industry-such as acrylic resins, emulsions, paints, and adhesives-the 180-bar pressure reserve guarantees a "one-touch clean" result, even under the most demanding operating conditions.

The 50L/min 180bar IBC Container Blasting Machine effectively breaks down viscous residues (such as chemical raw materials, food pastes, lubricants, etc.) on the inner wall of the IBC tote tank. The high flow rate of 50L/min quickly flushes away the loosened dirt, preventing secondary adhesion. Combined with a dedicated IBC rotary cleaning nozzle, the high-pressure water jet can cover all corners, welds, and other hard-to-reach areas inside the tank with 360° coverage, resulting in a cleaning effect far superior to manual scrubbing or low-pressure cleaning equipment.

180bar IBC Container Blasting Machine can clean a tonne container in minutes. The internal design features a three-dimensional rotating nozzle that ensures the cleaning medium covers every corner of the container's interior, including the most difficult-to-clean areas like the top and bottom recesses. For the food, pharmaceutical, and high-end chemical industries, cleanliness is a stringent requirement. Automatic cleaning machines consistently achieve the cleanliness levels required by GMP, FDA, and other regulations, ensuring product quality.

180bar IBC Container Blasting Machine can realize 360-degree automatic cleaning of the inside of the barrel without dead angle, with fast cleaning speed and high efficiency. It can also be used for automatic cleaning of other tank products

When cleaning IBC barrels, the traditional cleaning method is: the first step is to arrange additional personnel to dump and collect, and then clean with a handheld high-pressure water gun, and then naturally air dry after cleaning. This cleaning method requires a lot of manpower, and it is inevitable that the human body will come into contact with the stored materials during the process, which has certain safety hazards. Because there are dead corners inside the IBC barrel, the manual handheld high-pressure water gun cleaning is not comprehensive, and the wastewater after cleaning cannot be collected uniformly, which is easy to cause wastewater to flow across the cleaning site. Natural air drying after cleaning requires a large area, and on the other hand, it undoubtedly increases the cleaning cycle, affecting the reuse of IBC barrels.

In order to achieve efficient, safe and environmentally friendly cleaning of IBC tanks, Guangyuan Cleaning Equipment independently developed and put into use a set of IBC Container Blasting Machine, using three-dimensional high-pressure water cleaning technology to achieve comprehensive cleaning of the inside of the IBC tanks, and combined with residual extraction, efficiency, water control and other mechanisms to achieve a one-stop cleaning process for IBC tanks.





product key technologies

Advantages

1. Independently designed according to customer working conditions, automated internal and external cleaning and disinfection, simple operation, stable performance, high cleaning efficiency;

2. The cleaning time of each IBC barrel is about 2~4 minutes/barrel, saving manpower and material resources, greatly improving production efficiency, and greatly reducing labor intensity;



3. Solve the problem of difficulty in recruiting cleaning workers, greatly improve the working environment and be more environmentally friendly;

4. The system can be equipped with 5-500bar pressure cleaning to solve cleaning problems in various working conditions;

5. This system uses a precise 360° three-dimensional cleaning head with no dead angle, which has a large impact force and low liquid consumption, and truly realizes the problem of no dead angle cleaning;

6. Only 1-2 manual operations are required, with high economic benefits, and the investment cost can be recovered quickly, and the quality and production capacity are also greatly improved.



product details





Remote Control

Three-dimensional rotating nozzle

IBC tank cleaning display



Cleaning Effect Comparison

Hand-push device

Rotating sprinkler device

Disc cleaning device

The IBC Container Blasting Machine is widely used for cleaning IBC barrel for storage and transportation, plastic barrels, iron oil barrels, ink barrels and other raw material chemical barrels. The effect will have a direct impact on the overall productivity of an enterprise. Providing fast, efficient and effective cleaning, you will see significant improvements in cost and productivity.

Application With IBC Tank Cleaning Machine

1. IBC tank cleaning;

2. Oil drum cleaning;

3. Reactor cleaning

Customer Cases



IBC tank automatic cleaning

IBC tank automatic cleaning

IBC tank automatic cleaning

IBC tank automatic cleaning

Reactor automatic cleaning

IBC tank automatic cleaning

Zhengzhou GuangYuan Cleaning Equipment Co.,Ltd. Is a manufacturer for high pressure water jetting machine, founded in 2012, is committed to explore the field of a high pressure water jet market brand. Our company is located in Henan Province, China.

We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, High pressure cleaner, high pressure pump, cleaning system customization etc. Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc.  Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world. We sincerely look forward to cooperating with new and old clients.

01

Advanced Technology

We work closely with KAMAT, a world leader in cleaning machine industry, with the highest pressure of 3000bar, which is currently the highest pressure in the world's high-pressure water jet field.

02

Stable and Safe

The pressure regulating valve is flexible and light. The overpressure protection safety valve opens and closes sensitively and reliably. The bursting pressure of the high-pressure hose is 2.5-3.5 times the rated pressure.

03

Excellent Quality

The high pressure cleaning machine is manufactured and inspected strictly in accordance with national and industry standards before leaving the factory. It can work continuously for 24 hours at rated pressure

04

Custom Service

We understand that different industries and cleaning requirements may have specific needs. Therefore, we offer customization service, allowing customers to tailor the machine to their unique requirements.

1. Packing: Plywood packing

2. Shipping way: suggest deliver by sea

3. Delivery port: Qingdao Port; or deliver to any port you need
