15000Psi Double-gun Design Water Blasting Equipment



The 1000bar 82L/min dual-gun high-pressure cleaner is a high-performance cleaning device that is particularly suitable for industrial and commercial applications that require multi-tasking or large area cleaning at the same time. This type of cleaning machine combines the characteristics of high pressure and high flow, and is equipped with two spray guns, providing greater flexibility and efficiency.



The 1000bar dual-gun shared hydro blasting machine is a high-pressure cold water cleaning machine with variable frequency, which can be used with single or double guns without affecting each other. It can be operated flexibly in the process of single gun and double gun use very conveniently, without interfering with each other and affecting the flow and pressure during use.



High-pressure water jet cleaning equipment uses a high-pressure pump to pressurize the liquid to tens or even hundreds of MPa to clean the surface of materials and the inside of pipes.



High-pressure water jetting equipment can be used to clean old paint and rust on ships, and to remove oysters and algae in shipyards instead of sandblasting. It can also be used to clean the inside of heat exchangers, boilers, tanks, oil tanks, pipes, and pipelines.



Guangyuan hydro blasting machines are equipped with trailer units and offer a range of features to provide contractors with enhanced performance, superior durability. High pressure jetting equipment offers a range of engine improvements. The integrated design extends the life of the water jetting device and maintains the high-pressure seal of the pump as well as the operating system. Powerful performance and undeniable reliability are just two reasons why hydrojetting equipment is the clear choice for your cleaning system, with working pressures ranging from 100 bar to 1000 bar, making it ideal for a variety of cleaning jobs in the chemical field. As well as rust and paint removal in the mining industry, oil/gas industry and marine industry.



This Hydro Jetting Machine adopts a double-gun design, which not only provides high pressure but also achieves large flow, doubling the efficiency and is suitable for various industrial cleaning operations.



The double-gun high-pressure cleaning machine is mainly composed of high-pressure pumps, motors, control systems, spray guns, high-pressure water pipes and other components. Its working principle is to pressurize water to hundreds of MPa through a high-pressure pump, and then spray high-speed water through a spray gun, using the impact force of the water jet to peel off the dirt, thereby achieving the purpose of cleaning.



With pressure ratings up to 1000 bars,/14500psi, the High Pressure Industrial Pipe Cleaner provides unmatched cleaning power for a wide range of pipe systems. It is designed to effectively remove stubborn deposits, blockages and contaminants, ensuring optimal flow and performance in industrial pipes, sewer systems, and oil and gas pipelines. Equipped with cutting-edge pump technology and specialized nozzles, the machine delivers a focused and precise jet of water that penetrates deep into the pipe to restore it to optimal condition. With its rugged construction, safety features and unmatched cleaning power, our 1000bar High Pressure Industrial High Pressure Cleaner is a reliable solution for maintaining the efficiency and integrity of your pipe systems.





In short, double-gun high-pressure cleaning machines are widely used in various fields due to their high efficiency, environmental protection, and easy operation. Correct use and maintenance of equipment can not only improve cleaning efficiency, but also extend the service life of equipment, creating greater value for enterprises.







Model	GYB-5 1000/82
Pump Speed	366 rpm
High pressure pump	Triple plunger pump
	Pump head material: Stainelss steel
	Plunger material: stainless steel
	Pump speed:366rpm
	Plunger stock:120mm
Rate Pressure	1000 bar / 14500 psi
Water flow	82 L/min
Plunger dia.	22mm
Electric motor drive	160kw, 3Phase, 380v/50Hz or 440v/60Hz
Diesel engine drive	225kw, 6-cylinder







Industrial and Sewer PIpe Cleaning

Pipe pressure test, valve / hose pressure test, hydro pressure test, etc

Heavy equipment cleaning

Construction industry, car/truck cleaning, mixing drum/tank cleaning, tar/cement/agglutinant cleaning, etc

Ship and deck cleaning

Ship yard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom.

Rust Remove

Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal.

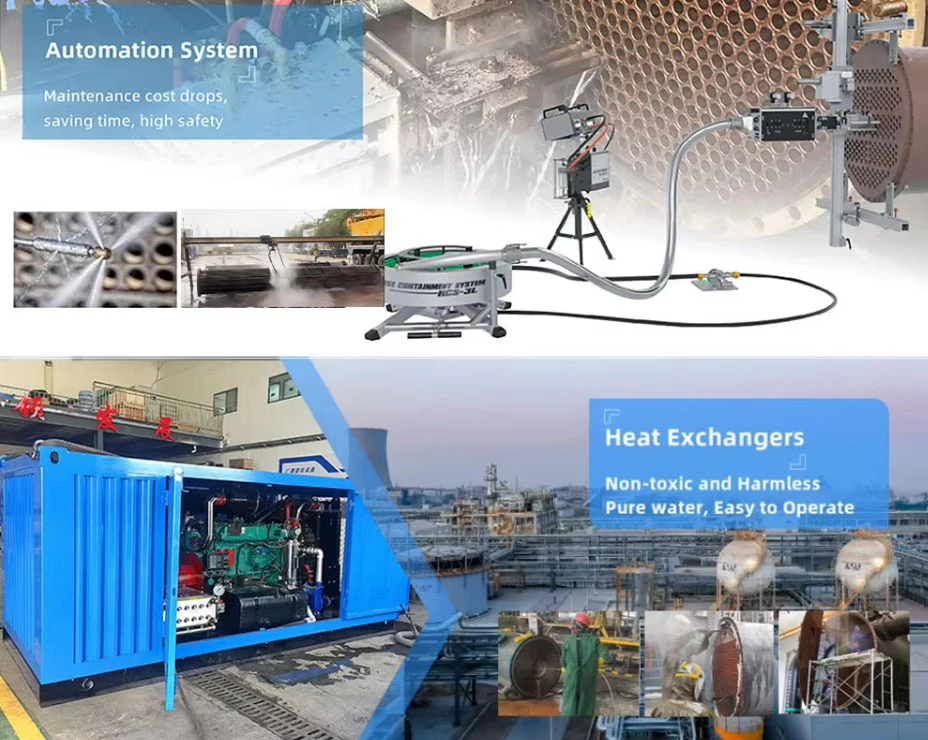

Exchanger cleaning

heat exchanger tube cleaning, condenser tube cleaning, pipe cleaning, reactor tank cleaning, filter screen cleaning, boil cleaning, tank cleaning, etc.











1. Packing: Plywood packing

2. Shipping way: suggest deliver by sea

3. Delivery port: Qingdao Port; or deliver to any port you need
