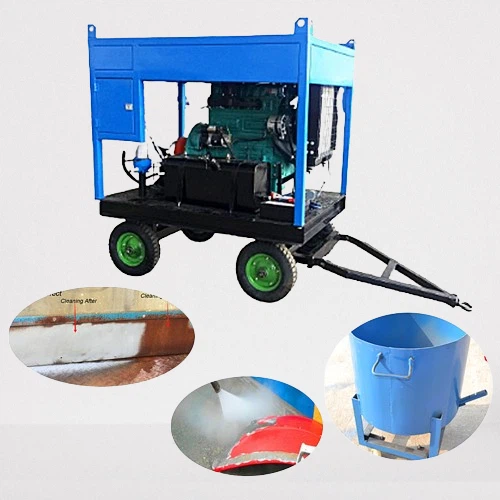

Rust Removal High Pressure Water Sand Blasting Equipment

The 7250psi High Pressure Water Sand Blasting Equipment always provides the best rust removal effect at the lowest cost. It can work continuously for 24 hours. It is usually used for paint and rust removal in automobile factories and shipyards.

What is a High Pressure Water Sand Blasting Equipment?

A High Pressure Water Sand Blasting Equipment, also commonly known as a wet blasting machine or water jet blasting machine, works by combining abrasive (sand) with high-pressure water in a mixing system to form a high-speed abrasive water jet. This jet is sprayed through nozzles onto the workpiece surface, utilizing the impact and cutting action of the abrasive, along with the cooling and rinsing effects of the water, to achieve cleaning, rust removal, coating removal, and roughening.

Its main difference from traditional dry blasting and pure high-pressure water cleaning lies in the introduction of water as the carrier and medium for the abrasive.





product key technologies

01.

Main Fetures

1. High pressure pump imported from Italy UDOR, copper pump head, ceramic plunger;

2. The pressure regulating valve is stainless steel body, alloy valve core;

3. Resistance of high temperature,high pressure, corrosion;

4. Small size and light weight, easy to move and operate;

02.

Working Principle
The water sandblasting cleaning machine is a high-pressure cleaning machine equipped with a special water spray gun. When high-pressure water is sprayed, the negative pressure of the water jet is used to suck sand near the nozzle, and the impact force and friction of the solid-liquid mixed fluid are used to remove the coating and rust layer.



product details





Diesel Engine

High Pressure Pump

Pressure Gauge

Main Features and Advantages

1. Environmentally Friendly and Dust-Free: This is its biggest advantage. Because the abrasive is enveloped in water, almost no dust is generated, greatly improving the working environment, protecting operator health, and meeting strict environmental protection requirements.

2. High Cleaning Efficiency: Combining the impact force of water and the cutting force of the abrasive, it has excellent removal effects on stubborn rust, paint, concrete, etc., and its efficiency is generally higher than that of pure high-pressure water cleaning.

3. Excellent Surface Quality: Water acts as a buffer and lubricant, reducing excessive cutting and substrate damage that can occur with dry blasting, resulting in a more uniform and fine surface roughness.

4. Easy Cleaning: Waste and impurities are washed away with the water, keeping the working area clean and minimizing subsequent cleaning work. Waste is mainly in the form of mud, making it easy to collect and dispose of.

5. Wide Applicability: Suitable for treating various substrates such as steel, concrete, stone, ships, and pipelines.



Effect comparison

Rust Removal

Rust Removal

Paint Removal

High Pressure Water Sand blasting Equipment are widely used in industrial fields requiring powerful cleaning and surface treatment:

1. Shipbuilding and Marine Engineering: Rust removal from ship hulls, removal of marine organisms, and removal of deck coatings.

2. Bridges and Steel Structures: Removal of old paint and rust, preparing for repainting.

3. Petrochemical Industry: Cleaning of scale and corrosion on the inner and outer walls of large storage tanks, reactors, and pipelines.

4. Municipal Engineering: Removal of graffiti, stains, and aging layers from concrete building surfaces; roughening of road surfaces.

5. Industrial Cleaning: Cleaning molds and removing heavy oil and coatings from parts.

6. Aircraft maintenance: Removing old paint from the aircraft skin.

Customer Cases



Oil drum paint removal

Steel structure rust removal

Automobile paint removal

Steel rust removal

Hull paint and rust removal

Steel plate paint removal

Zhengzhou GuangYuan Cleaning Equipment Co.,Ltd. Is a manufacturer for high pressure water jetting machine, founded in 2012, is committed to explore the field of a high pressure water jet market brand. Our company is located in Henan Province, China.

We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, High pressure cleaner, high pressure pump, cleaning system customization etc. Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc.  Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world. We sincerely look forward to cooperating with new and old clients.

01

Advanced Technology

We work closely with KAMAT, a world leader in cleaning machine industry, with the highest pressure of 3000bar, which is currently the highest pressure in the world's high-pressure water jet field.

02

Stable and Safe

The pressure regulating valve is flexible and light. The overpressure protection safety valve opens and closes sensitively and reliably. The bursting pressure of the high-pressure hose is 2.5-3.5 times the rated pressure.

03

Excellent Quality

The high pressure cleaning machine is manufactured and inspected strictly in accordance with national and industry standards before leaving the factory. It can work continuously for 24 hours at rated pressure

04

Custom Service

We understand that different industries and cleaning requirements may have specific needs. Therefore, we offer customization service, allowing customers to tailor the machine to their unique requirements.

1. Packing: Plywood packing

2. Shipping way: suggest deliver by sea

3. Delivery port: Qingdao Port; or deliver to any port you need
